| ENGINGE |
TPYE |
PISTON NO. |
| Detroit |
6-71, 12-71 |
5102770 |
| Detroit |
4-71, 8-71 |
5102771 |
| Detroit |
3-53, 6V53T |
5198203 |
| Detroit |
S60 12.7L |
23525566 |
Core structure
Detroit cylinder heads are typically made of cast iron (some high-performance models may use aluminum alloy), and the internal design includes intake and exhaust ducts, cooling water jackets, valve guide holes, and spark plug/injector mounting holes 2 5. For instance, the cylinder head of the Detroit S60 engine also includes camshaft bearing holes to accommodate the overhead camshaft design.
Core function
Sealed combustion chamber: Together with the top of the piston and the cylinder wall, it forms a closed space to withstand high-temperature and high-pressure gas.
Heat dissipation and lubrication: The cooling is achieved through the circulation of coolant in the water jacket, and lubrication is maintained by the oil mist condensation reflux mechanism.
Support the valve train system: Fix the intake and exhaust valves, camshaft and other components to ensure that the opening and closing of the valves are synchronized with the combustion.
Ii. Main Product Models and Parameters

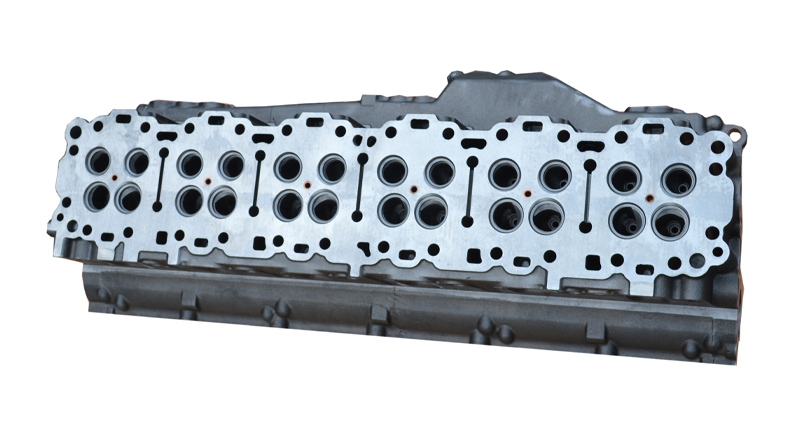

Detroit S60 series
Part Number: 23531254, 23538858, suitable for 14L displacement engines, cast iron material.
